Toden Machinery Equipment Co., Ltd

High Frequency Machine

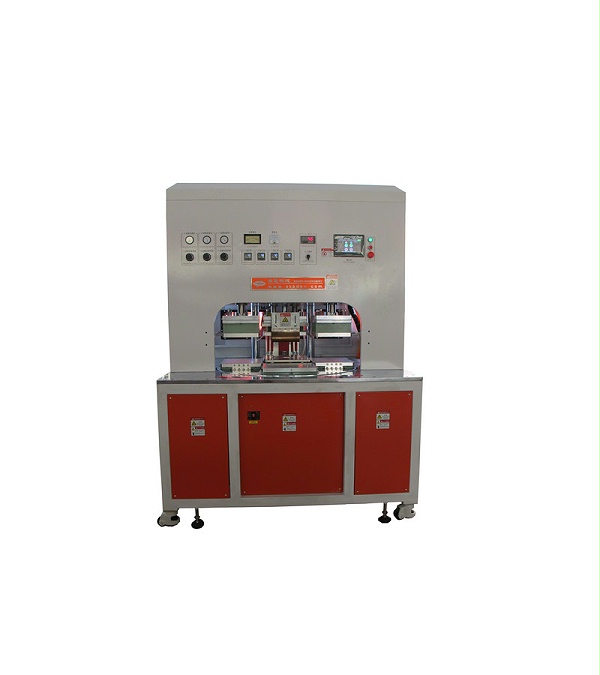

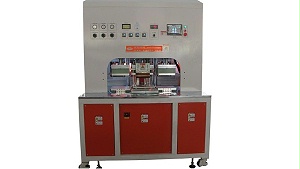

Automatic High frequency welding machine

Automatic High frequency welding machine

Machine model:TD-4030

Function:3 working head ,4 station on the turn table. welding+ cutting+ heat press function to satisfied customer product design.


Machine Features
High Frequency Blister Welding And Cuttig Machine

1. the machine has widely using ,multi function ,but we usually using on double Plastic blister welding and cutting ,double side paper and center plastic welding ,paperboard with plastic blister packages. like: electronic product ,daily using product, gift ,hardware packing, lamp packing, cooking tools packages and so on.it is easily watching ,and beautiful appearance with high value.it is very popular among customer.

2.the machine using for blister tray packages, we can use it one product in one mold .or two products in one mold according to blister tray sizes. Usually ,one up mold ,and two down mold.

3. Machine has high sensitive spark protection device. it can protect the electric tube during machine working.

Machine parameter

Machine Model TD-4030
Working way  4 work station
Frequency Tube 8KW round tube
Anti-Sparker America 555 electric tube
Transformer 8KW copper transformer
Oscillation Tube 7T69RB TOSHIBA tube
max mold size 400*500 mm
Working table size 600*400 mm
Suitable Material PVC APET PETG double plastic
Machine Voltage 380v Three phases 60HZ
Machine Power 8KW
Machine speed 5-15S/1pc
Machine Size 1980*1860*2250 mm(L*W*H)
